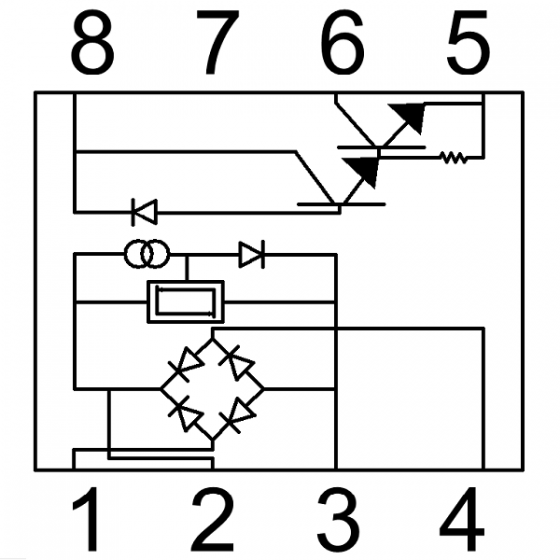

CS3700 Schematic

CS3700 Features

Hermetically Sealed

Total Ionizing Dose tested to 150 Krad(si)

Withstand Test Voltage 1,500VDC

8-pin DIP Package

Low Input Requirements

High Current Transfer Ratio

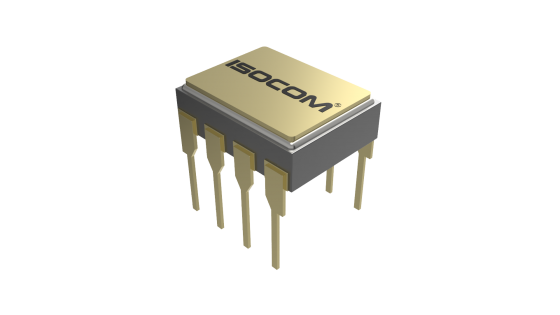

These devices are single channel, hermetically sealed Voltage/Current threshold detection optocouplers. The CS3700 series are being used in environments encountered by space applications. Package styles for this device include 8 Pin DIL Package with surface mount, solder dip option available.

 Therefore absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.
