MC600

Optocouplers

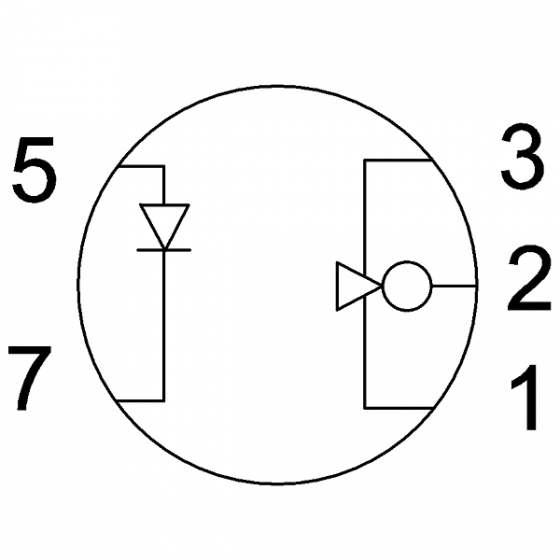

MC600 Schematic

MC600 Features

Total Ionizing Dose tested to 1 Mrad(si)

Displacement Damage tested to 1 MEV x 10¹³

Hermetically Sealed

High Withstand Test Voltage up to 1,000VDC

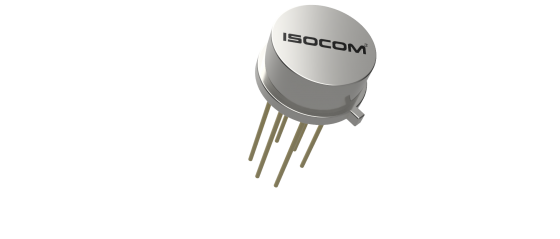

6-pin TO-5 Metal Can Package

High Common Mode Rejection

High Current Transfer Ratio


Description

This device is a single, hermetically sealed optically coupled isolator.  Each channel is composed of a Gallium Arsenide infrared emitting diode coupled to an integrated high speed photon detector.  The output of the detector is an open collector Schottky clamped transistor.  These optocouplers have internal shield providing a guaranteed common mode transient immunity specification of 1,000V/μs.  These optocouplers are for Isolation Voltage applications requiring up to 2,500VDC.

The MC600 is being used in environments encountered by space applications. Package styles for this device include a 6-pin TO-5 metal can package, with solder dip option available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
