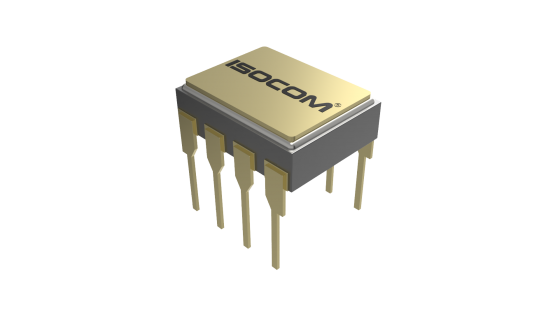

CS801

Optocouplers/Opto-Isolators

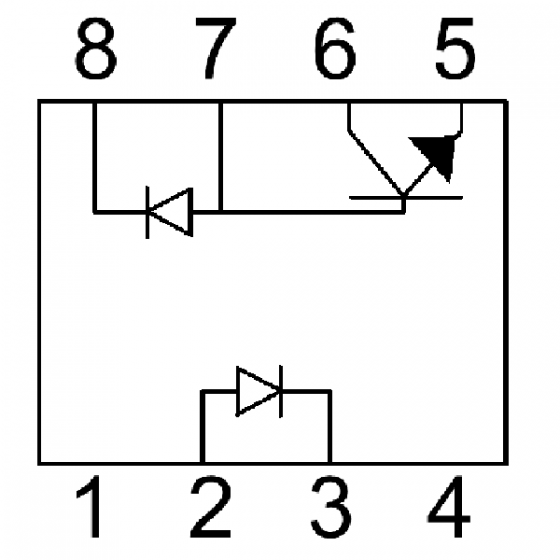

CS801 Schematic

CS801 Features

Total Ionizing Dose tested to 1 Mrad(si)

Displacement Damage tested to 3 MEV x 10¹²

Hermetically Sealed

High Isolation Voltage

8-pin Dual Inline Package

Low Input Requirements

High Speed – typically 2 MHz


Description

This device is a single channel, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.

The CS801 is being used in environments encountered by space applications. Package styles for this device include 8-pin DIP package, with surface mount and solder dip options available.  These packages have a shield effect to cut off ambient light as they are designed for high density mounting applications.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units.  Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
