Released to European Standard and complies to MIL-STD
Total Ionizing Dose tested to 1 Mrad(si)
Displacement Damage tested to 3 MEV x 10¹²
1,000V Isolation Voltage
6-pin LCC Package
Low Input Requirements
High Speed – typically 2 MHz

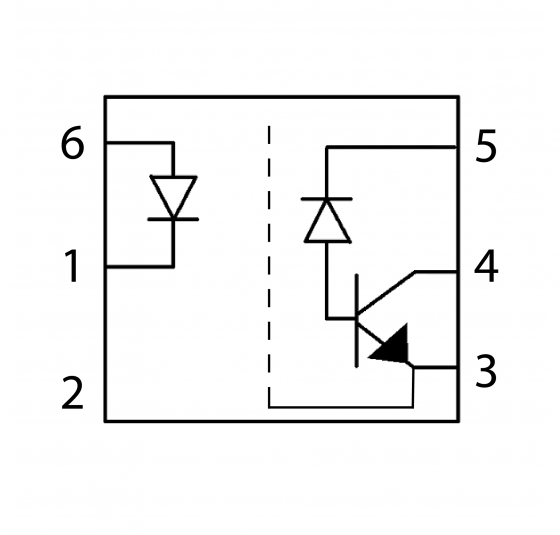

This device is a single channel, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.

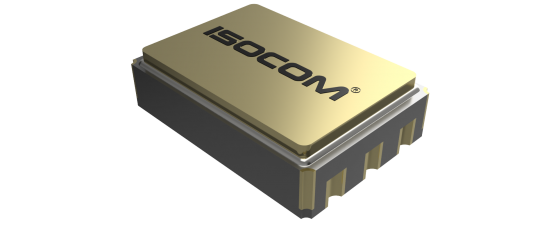

The CSM1800 is being used in environments encountered by space applications. It is manufactured to meet JANS standards in conjunction with MIL-PRF-19500 procedures. This device is available in a LCC-6 package, with solder dip option available. These packages have a shield effect to cut off ambient light as they are designed for high density mounting applications.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
