MC811 Features
- Total Ionizing Dose tested to 1 Mrad(si)
- Displacement Damage tested to 3 MEV x 10¹²
- Hermetically Sealed
- High Withstand Test Voltage up to 1,000VDC
- High Isolation Voltage

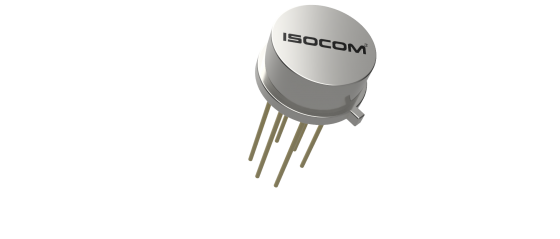

- 6-pin TO-5 Metal Can Package
- Low Input Requirements
- High Speed – typically 2 MHz
Description

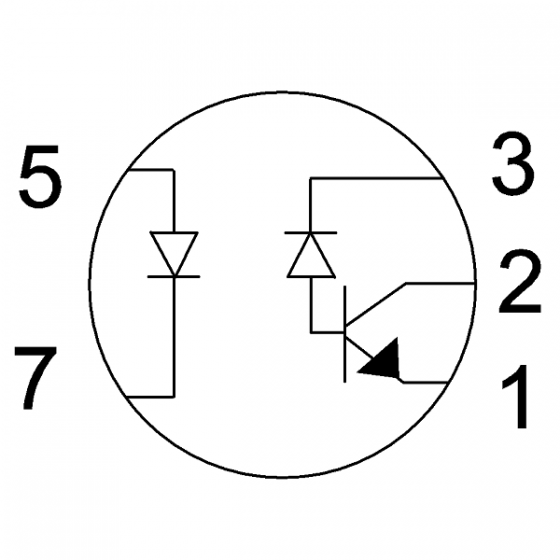

These devices are single, hermetically sealed optically coupled isolators. Each channel is composed of a Gallium Arsenide infra-red emitting diode and a silicon phototransistor.
The MC800 series are being used in environments encounted by space applications. Package styles for this device include 6 Pin TO-5 Metal Can Package with solder dip option available. These packages have a shield effect to cut off ambient light as they are designed for high density mounting applications.
