Released to European standard and complies to MIL-STD
Total Ionizing Dose tested to 200 Krad(si)
Displacement Damage tested to 1 MEV x 10¹²

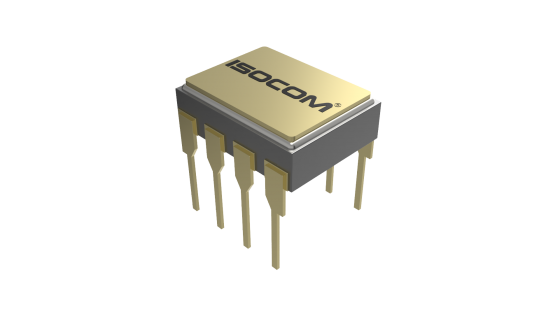

8-pin DIP Package
Low Input Requirements
High Current Transfer Ratio

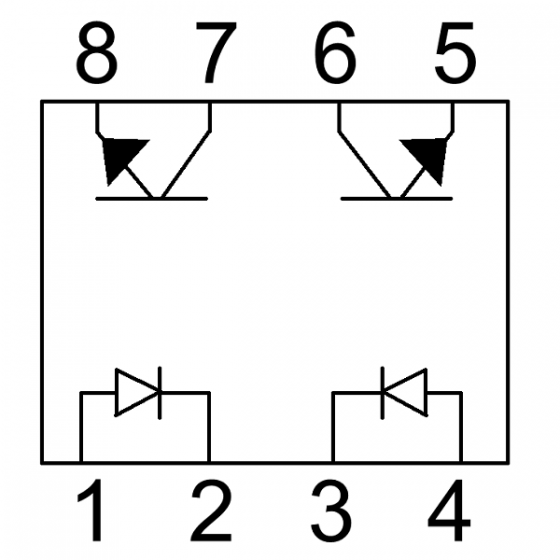

This device is a dual channel, hermetically sealed optically coupled isolator. Each channel is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.
The CD500 is being used in environments encountered by space applications. It is manufactured to JANS standards in conjunction with MIL-PRF-19500 procedures. Package styles for this device include an 8-pin DIP package, with surface mount and solder dip options available.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
