CS200

Optocouplers/Opto-Isolators

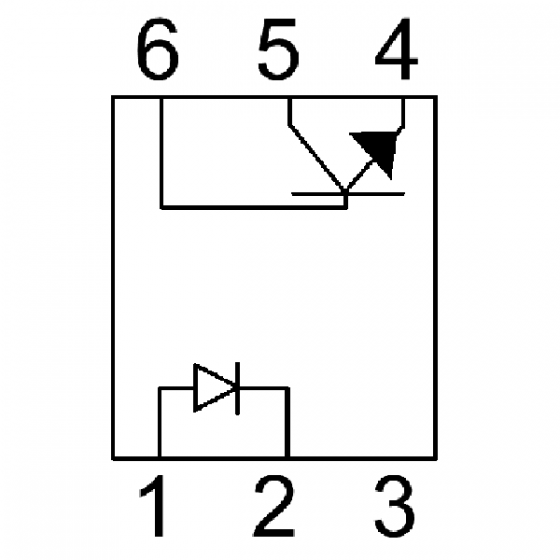

CS200 Schematic

CS200 Features

Displacement Damage tested to 1 MEV x 10¹³

Total Ionizing Dose tested to 150 Krad(si)

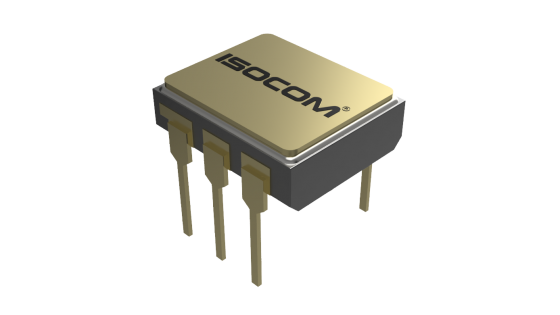

6-pin DIP Package

Low Input Requirements

High Current Transfer Ratio

High Isolation up to 1,500VDC

Hermetically Sealed


Description

This device is a single, hermetically sealed optically coupled isolator.  It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor. The CS200 is being used in environments encountered by space applications. Package styles for this device include a 6-pin DIP package, with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
