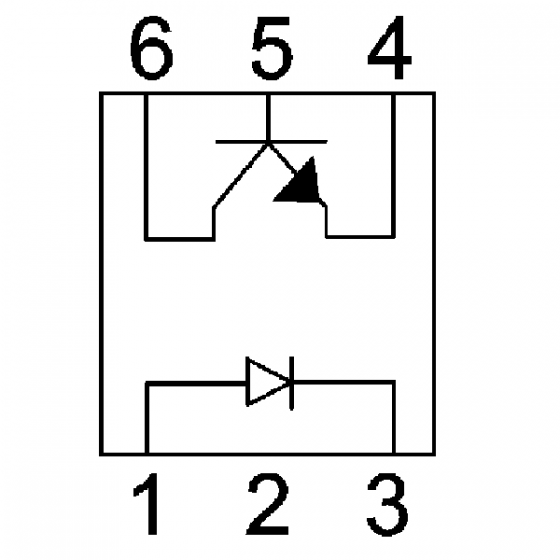

CS224 Schematic

CS224 Features

Hermetically Sealed

High Isolation up to 1,500VDC

6-pin DIP Package

Low Input Requirements

High Current Transfer Ratio

Radiation Tolerant tested to 150 Krad(si)

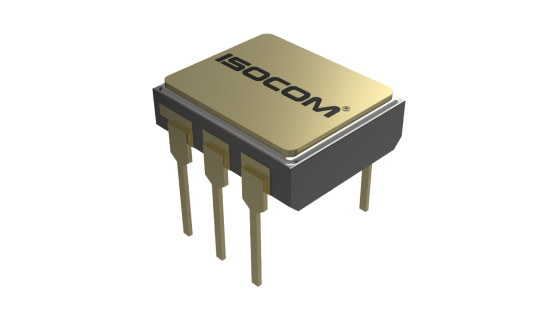

This device is a single channel, hermetically sealed optically coupled isolator.  It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.

The CS224 series is being used in environments encountered by space applications. Package styles for this device include a 6-pin DIP package, with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units.  Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
