CS3082 Schematic

CS3082 Features

Hermetically Sealed

High Isolation 1500VDC

6-pin Dual Inline Package

800V Peak Blocking Voltage

Zero Crossing Voltage

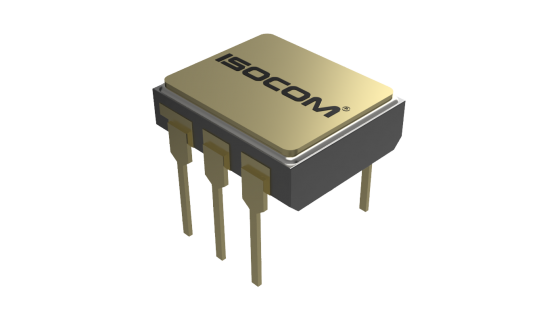

This device is a single, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infrared emitting diode coupled to a silicon detector performing the function of a zero voltage crossing bilateral triac driver.

The CS3082 is being used in environments encountered by space applications. Package styles for this device include 6-pin DIP package with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
