ISM120NS1-19 Schematic

ISM120NS1-19 Features

1200V Blocking Voltage

Ultra-Low RDS(ON) = 0.196Ω @ VGS=20V

SMD 1.0 Package

Full military temperature range – 55°C to +125°C

Hermetically Sealed


The high performance ISM120NS1-19 is a 1200V/19A N-channel MOSFET that has been specifically designed for harsh environments, such as space, defence, aerospace, and other high reliability applications such as aircraft control systems.

The ISM120NS1-19 combines the traditional MOSFET benefits of fast switching, voltage control and temperature stability, with low RDS(ON)with low gate charge; making it ideal for use in DC-DC converters and motor control.

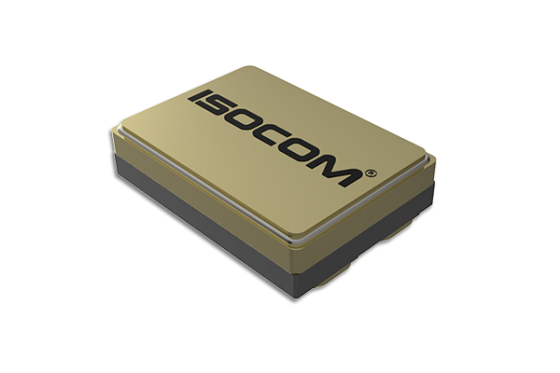

The ISM120NS1-19 is available in an SMD 1.0 package, with solder dip option available.
