CS5760

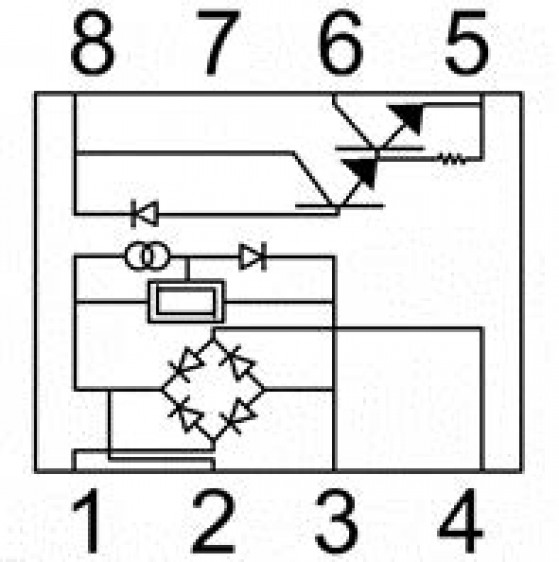

This device is a single-channel, hermetically sealed, voltage / current threshold detection optically coupled isolators, composed of a light emitting diode (LED), a threshold sensing input buffer IC and a high gain photon detector.

Threshold sensing prior to the LED and detector minimizes effects of any variation in optical coupling. Hysteresis is also provided in the buffer for extra noise immunity and switching stability. The buffer circuit is designed with internal clamping diodes to protect the circuitry and LED from a wide range of overvoltage and overcurrent transients.

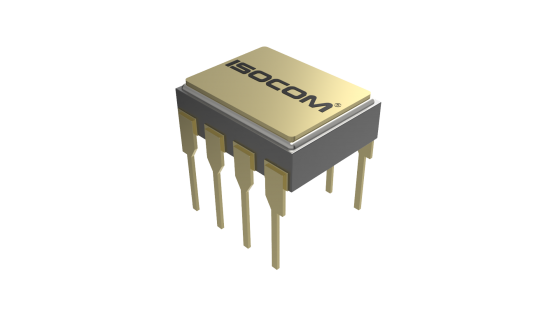

The CS5760 is being used in environments encounted by space applications. Package styles for this device include a 8-Pin DIP package with solder dip options available. All devices are tested in accordance with MIL-PRF-38534 and MIL-PRF-19500.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.
