CS600

Optocouplers

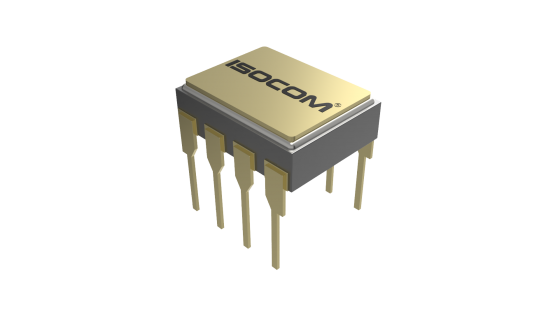

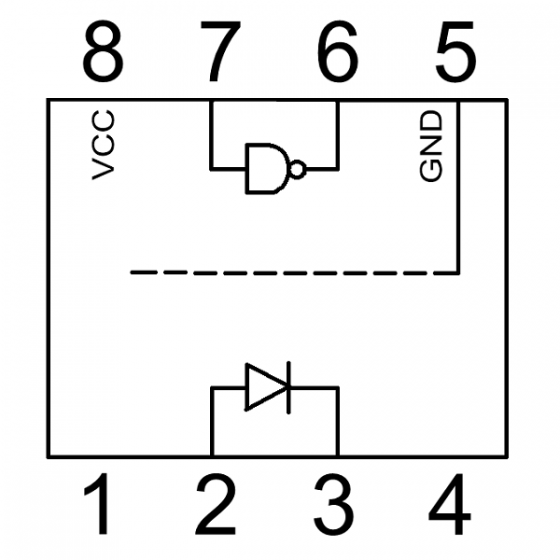

CS600 Schematic

CS600 Features

Released to European Standard and complies to MIL-STD

Total Ionizing Dose tested to 1 Mrad(si)

Displacement Damage tested to 1 MEV x 10¹³

Hermetically Sealed

High Withstand Test Voltage up to 1,500VDC

8-pin DIP Package

High Common Mode Rejection

High Speed – typically 10 Mbits/s (75ns max)


Description

These devices are single, hermetically sealed optically coupled isolators.  Each channel is composed of a Gallium Arsenide infrared emitting diode coupled to an integrated high speed photon detector.  The output of the detector is an open collector Schottky clamped transistor.  These optocouplers have internal shield providing a guaranteed common mode transient immunity specification of 1,000V/μs.  These optocouplers are for Isolation Voltage applications requiring up to 2,500VDC.

The CS600 is being used in environments encountered by space applications.  It is manufactured to meet JANS standards in conjunction with MIL-PRF-19500 procedures (please see next page for all other applicable specifications).  Package styles for this device include 8-pin DIP package, with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
