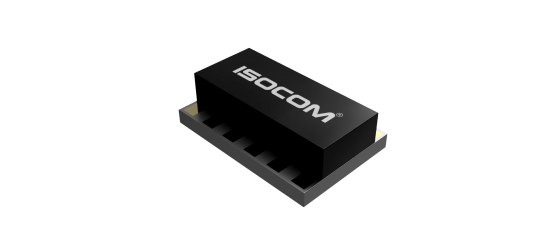

CH390

Optocouplers

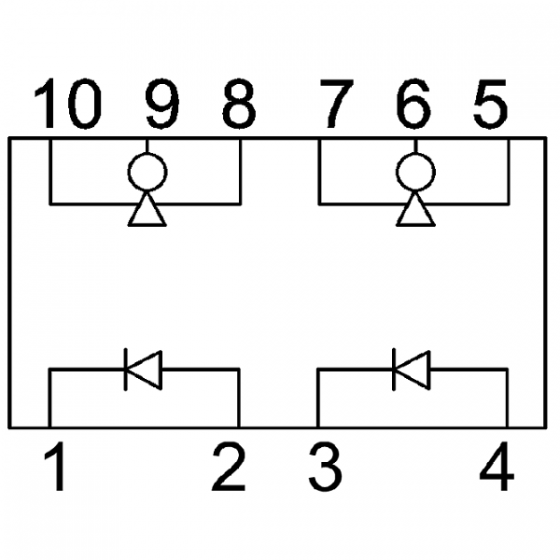

CH390 Schematic

CH390 Features

Released to European Standard and complies to MIL-STD

High Current Transfer Ratio (Typically 1,000%)

Displacement Damage tested to 3 MEV x 10¹²

Hermetically Sealed

High Withstand Test Voltage

10-pin Hybrid Package

Low Input Requirement of 0.5mA


Description

This device is a dual channel, hermetically sealed optically coupled isolator.  Each channel is composed of a Gallium Arsenide infrared emitting diode and a high gain photon detector.  The high gain output stage features and open collector output providing both lower output saturation and higher speed of operation than is possible with conventional photodarlington type couplers.

The CH390 is being used in environments encountered by space applications.  It is manufactured to meet JANS standards in conjunction with MIL-PRF-19500 procedures.  Package styles for this device include 10-pin hybrid package, with solder dip option available. This package has a shield effect to cut off ambient light as they are designed for high density mounting applications.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
