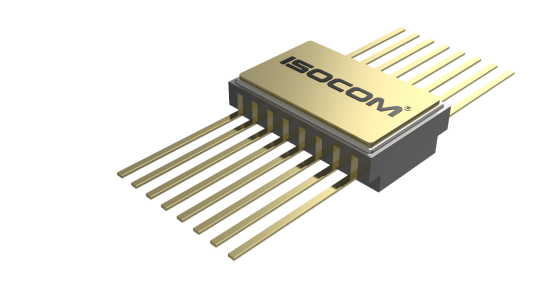

CSM161-2

Optocouplers/Opto-Isolators

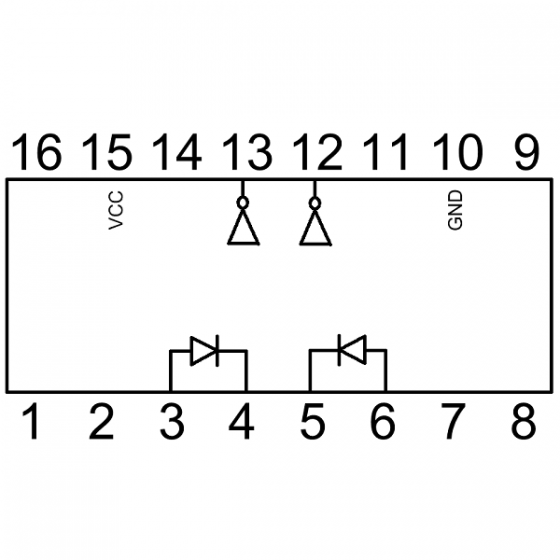

CSM161-2 Schematic

CSM161-2 Features

Total Ionizing Dose tested to 30 Krad(si)

Displacement Damage tested to 3 MEV x 10¹²

Hermetically Sealed

High Withstand Test Voltage of 1,500VDC

16-pin Flatpack Package

Low Input Requirement of 0.5mA

High Current Transfer Ratio (Typically 1,000%)


Description

This device is are dual channel, hermetically sealed optically coupled isolator.  Each channel is composed of a Gallium Arsenide infrared emitting diode and a high gain photon detector.  The high gain output stage features an open collector output providing both lower output saturation and higher speed of operation than is possible with conventional photodarlington type couplers.

The CSM161-2 is being used in environments encountered by space applications. Package styles for this device include 16-pin Flatpack package, with solder dip option available.  This package has a shield effect to cut off ambient light, as they are designed for high density mounting applications.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
