CSM6730

Optocouplers

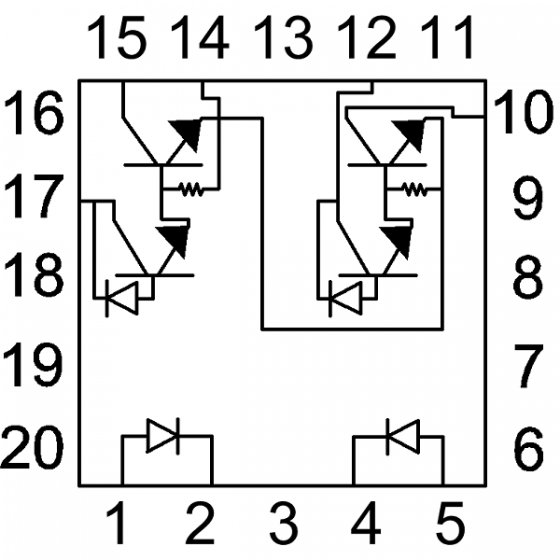

CSM6730 Schematic

CSM6730 Features

Displacement Damage tested to 1 MeV x 10¹³

Low Input Requirements

Withstand test voltage of 1,000VDC

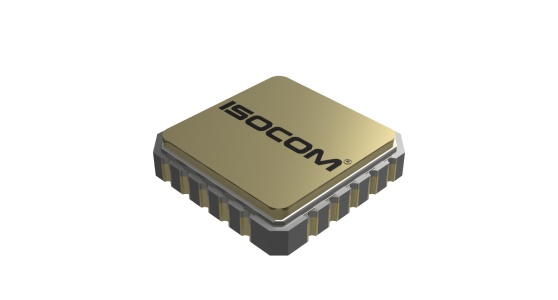

LCC-20 Package

Hermetically Sealed

Low Output Saturation Voltage

High Current Ratio


Description

This device is a dual channel, hermetically sealed optically coupled isolator.  Each channel is composed of a Gallium Arsenide infrared emitting diode and a high gain photon detector.  The high gain output stage features and open collector output providing both lower output saturation and higher speed of operation than is possible with conventional photodarlington type couplers.

The CSM6730 is being used in environments encountered by space applications. Package styles for this device include LCC-20 package, with solder dip option available.  This package has a shield effect to cut off ambient light as they are designed for high density mounting applications.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units.  Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.

How to buy Request quote Download Datasheet
