Total Ionizing Dose tested to 1 Mrad(si)
Displacement Damage tested to 3 MEV x 10¹²
High Withstand Test Voltage up to 1,000VDC
High Isolation Voltage
6-pin TO-5 Metal Can Package
Low Input Requirements
High Speed – typically 2 MHz

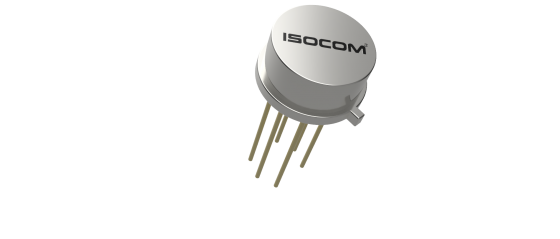

This device is a single channel, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.
The MC810 is being used in harsh radiation environments encountered by space applications. Package styles for this device include 6-pin TO-5 metal can package, with solder dip option available. These packages have a shield effect to cut off ambient light as they are designed for high density mounting applications.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
