CSM11G1 Features
Radiation Tolerance Tested to 150 Krad(Si)
Displacement Damage Tested to 1 MeV x 1013
Withstand Test Voltage of 1,000VDC
High Current Transfer Ration
Low Input Requirements
Small Outline Package for Surface Mount
Hermetically Sealed
Description
This device is a hermetically sealed, single channel optically coupled isolator. It consists of a Gallium Arsenide infrared emitting diode and a silicon darlington phototransistor. The breakdown voltage of this component is 350V and a high CTR of up to 1000% at 25o.

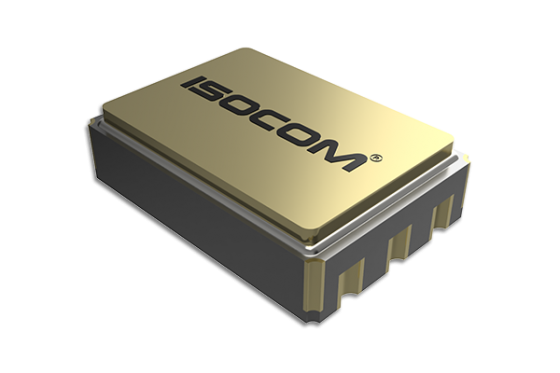

The CSM11G is being used in environments encountered by space applications. Package styles include a 6-Pad LCC package.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.
