CH300

Optocouplers

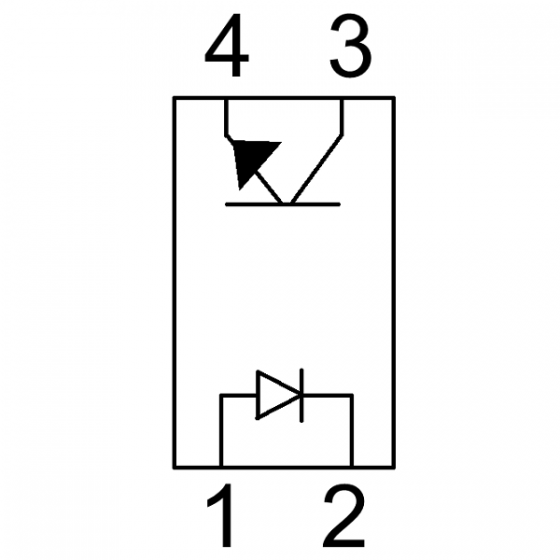

CH300 Schematic

CH300 Features

Released to European Standard and complies to MIL-STD

Hermetically Sealed

Radiation Tolerant tested to 150 Krad(si)

High Isolation up to 500VDC

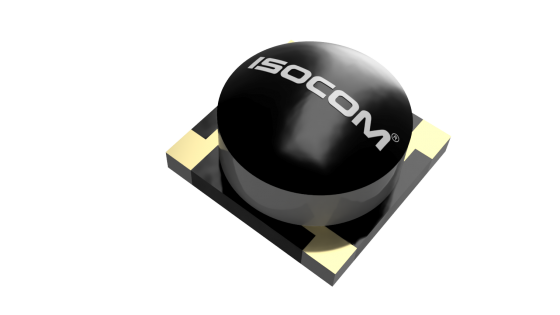

4-pin Hybrid Package

Low Input Requirements

High Current Transfer Ratio


Description

This device is a single channel, hermetically sealed optically coupled isolator.  It is composed of a Gallium Arsenide infrared emitting diode and a silicon phototransistor.

The CH300 is being used in environments encountered by space applications.  It is manufactured to JANS standards in conjunction with MIL-PRF-19500 procedures.  Package styles for this device include a 4-pin Hybrid package for sub assembly mounting, with solder dip option available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.

How to buy Request quote Download Datasheet
