CH49 Features
Radiation Tolerance Tested to 150 Krad(Si)
Displacement Damage Tested to 1 MeV x 1013
Withstand Test Voltage of 1,000 VDC
High Current Transfer Ratio
Low Input Requirements
Small Outline Package for Surface Mount
Hermetically Sealed
3.8sq Package
Description

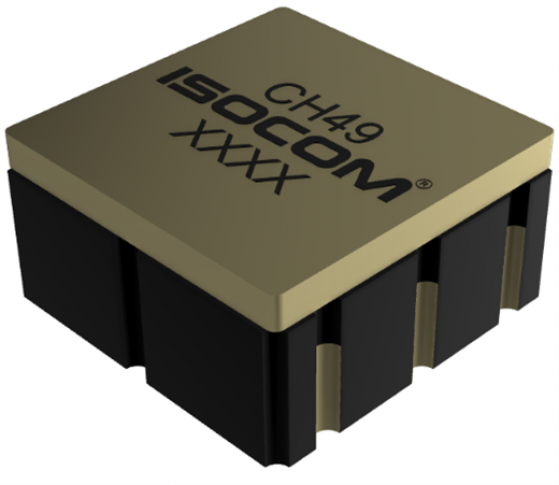

The CH49 is a hermetically sealed, single channel optically coupled isolator. It is comprised of an infrared emitting diode and a silicon phototransistor.
The CH49 is being used in environments encountered in space applications.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.
