CSM101

Optocouplers

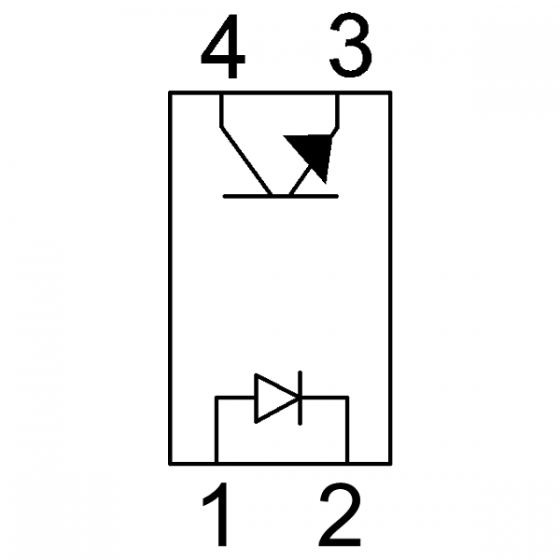

CSM101 Schematic

CSM101 Features

Total Ionizing Dose tested to 150 Krad(si)

Displacement Damage tested to 1 MeV x 10¹³

Withstand test voltage of 1,000VDC

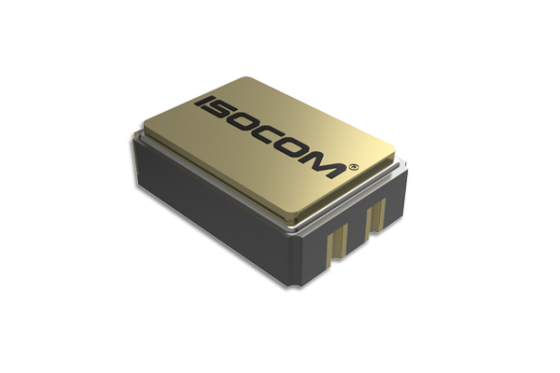

LCC-4 Package

Low Input Requirements

High Current Ratio

Hermetically Sealed

Small outline package for surface mount


Description

This device is a single channel, hermetically sealed and optically coupled isolator.  It is composed of an infrared emitting diode and a silicon phototransistor. The CSM101 is being used in environments encountered by space applications. Package styles for this device include an LCC-4 package, with solder dip option available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units.  Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.

How to buy Request quote Download Datasheet
