CSM103 Features
- Total Ionising Dose Tested to 150 Krad(Si)
- Displacement Damage Tested to 1 MeV x 1013
- Withstand Test Voltage of 1,000 VDC
- High Current Ratio
- Low Input Requirements
- 4-Pin LCC Package
- Hermetically Sealed
- Small Outline Package for Surface Mount
Description

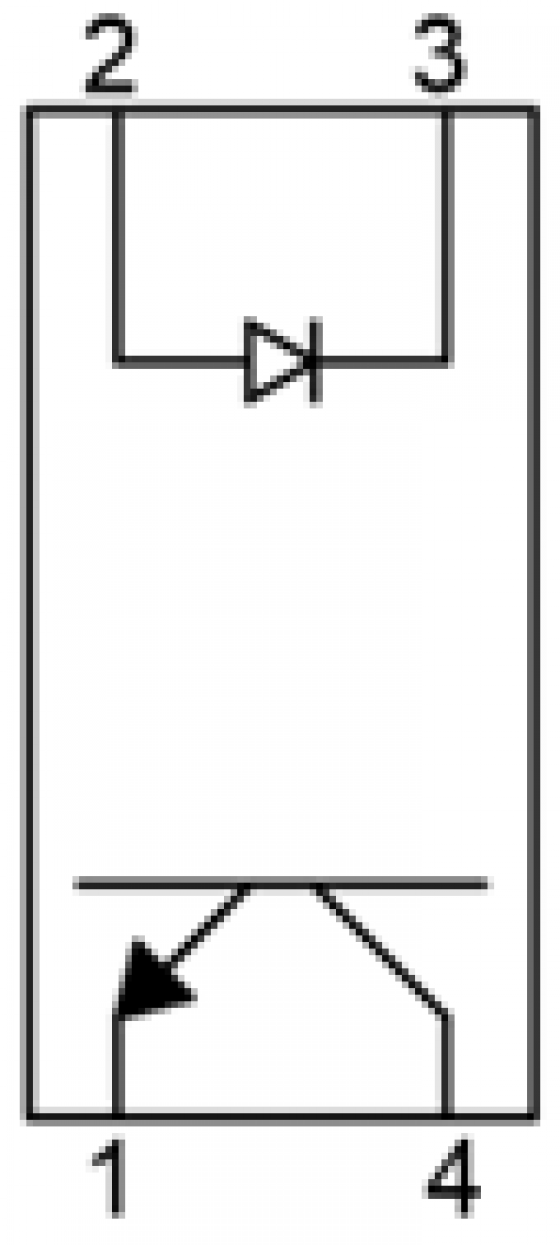

The CSM103 is a hermetically sealed, single-channel optically coupled isolator. It is composed of an infrared emitting
diode and silicon phototransistor.
The CSM103 series is being used in environments encountered in space applications. Package styles for this device
include a 4-Pin LCC package with solder dip options available.
Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics
are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted.
