CS3033

Optocouplers

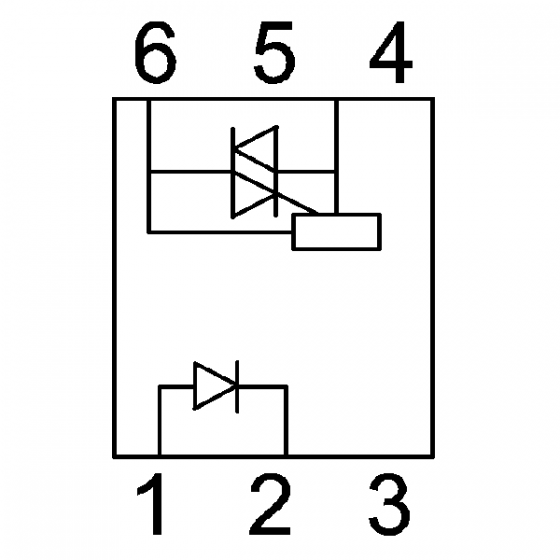

CS3033 Schematic

CS3033 Features

Released to European standard and complies to MIL-STD

Hermetically Sealed

High Isolation 1500VDC

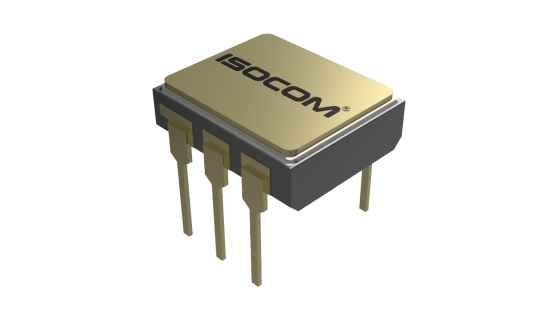

6-pin Dual Inline Package

250V High Breakdown Voltage

Zero Crossing Voltage


Description

This device is a single, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infra-red emitting diode coupled to a silicon detector performing the function of a zero voltage crossing bilateral triac driver.

The CS3033 is being used in environments encountered by space applications. It is manufactured to JANS standard in conjunction with MIL-PRF-19500 procedures. Package styles for this device include 6-pin DIP package with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.
