CS3042

Optocouplers

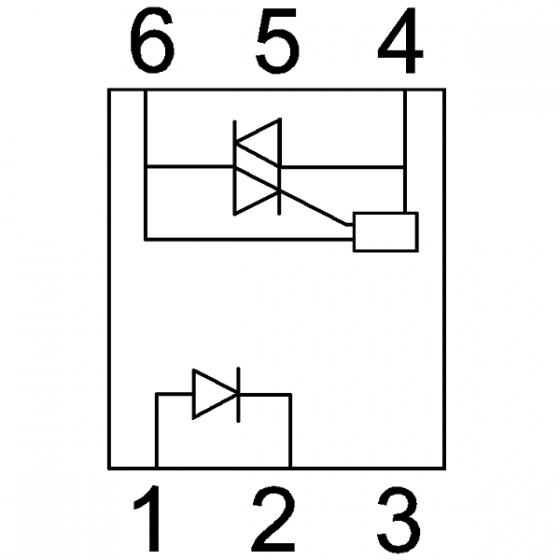

CS3042 Schematic

CS3042 Features

Hermetically Sealed

High Isolation 1500VDC

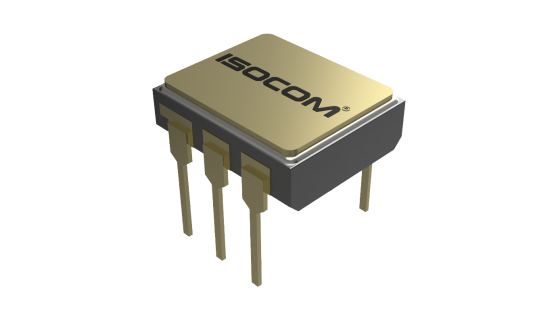

6-pin Dual Inline Package

400V Peak Blocking Voltage

Zero Crossing Voltage


Description

This device is a single, hermetically sealed optically coupled isolator. It is composed of a Gallium Arsenide infra-red emitting diode coupled to a silicon detector performing the function of a zero voltage crossing bilateral triac driver.

The CS3042 is being used in environments encountered by space applications. Package styles for this device include 6-pin DIP package with surface mount and solder dip options available.

Absolute maximum ratings, recommended operating conditions, electrical specifications and performance characteristics are identical for all units. Any exceptions, due to packaging variations and limitations, are as noted in the datasheet.

How to buy Request quote Download Datasheet
