Voltage Regulators

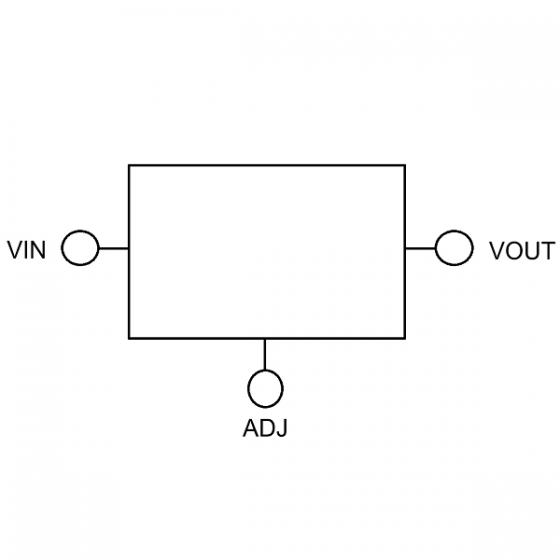

IS5972KRHL Schematic

IS5972KRHL Features

Output Current Limit

Internal Thermal Overload Protection

Output Current to 1.5 Amps

Adjustable Output using two External Resistors

Available in 3 Lead Form Options: Straight, Up and Down (TO257)

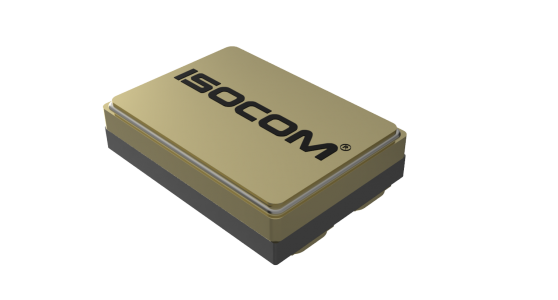

The IS5972RH is a radiation hardened 3-terminal positive adjustable regulator capable of supplying up to 1.5A of current. The output is adjustable using external resistors for a range of V ref to 37V. Excellent line and load regulation characteristics ensure accurate performance. The IS5972RH has full protection with current and thermal limiting. The IS5972 is packaged in two space saving packages, the 3 pin power surface mount ceramic SMD-1 or the TO-257 package with 3 lead form options: straight, up and down.

How to buy Request quote Download Datasheet



Login to access Documents and the ability to Request a Quote.

Forgot your password?

Request quote

Part: IS5972KRHL

Please give details of your requirements and a member of the team will be in touch.
