Voltage Regulators

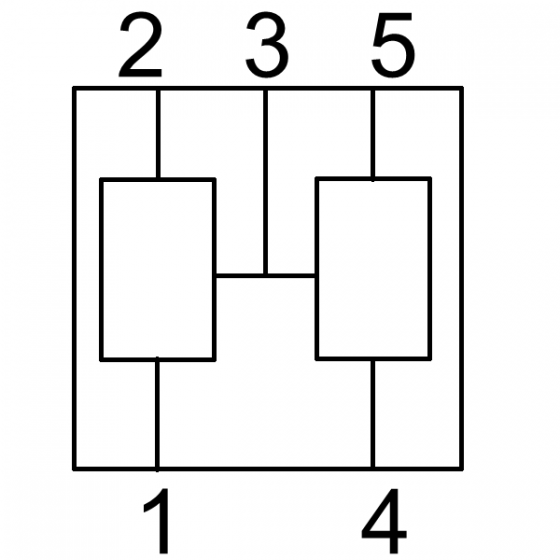

IS5931 Schematic

IS5931 Features

Dual Low Dropout Voltage

Internal Short Circuit Current Limit

Output Voltages Are Internally Set To ±1% Max

Electrically Isolated Case

Internal Thermal Overload Protection

Many Output Voltage Combinations

Alternate Package and Lead Form Configurations Available

Alternate Output Voltages Available

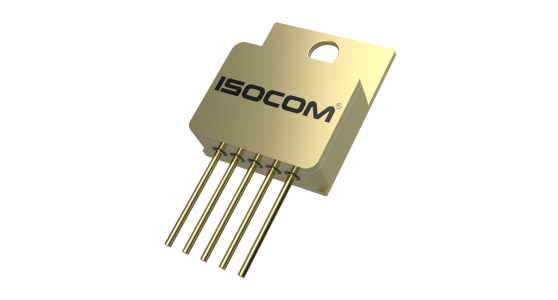

The IS5930RH Series offers low dropout voltages on both the positive and negative regulators while offering radiation tolerance for space applications. This, combined with the low JC, allows increased output current while providing exceptional device efficiency. Because of the increased efficiency, a small hermetic 5 pin package can be used providing maximum performance while occupying minimal board space. Output voltages are internally trimmed to ±1% maximum resulting in consistent and accurate operation. Additionally, both regulators offer internal short circuit current and thermal limiting, which allows circuit protection and eliminates the need for external components and excessive derating.
