Voltage Regulators

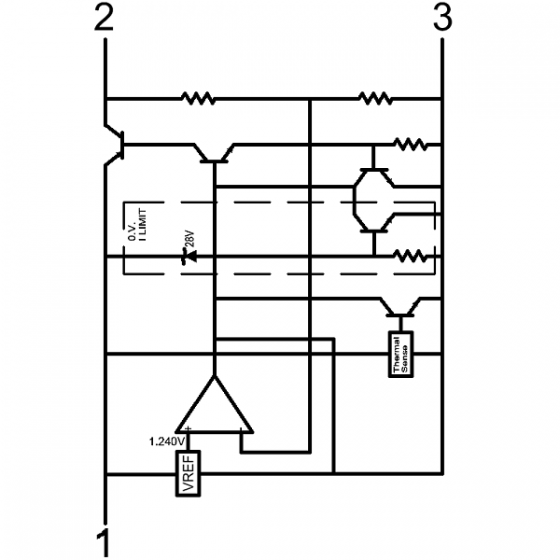

IS5275 Schematic

IS5275 Features

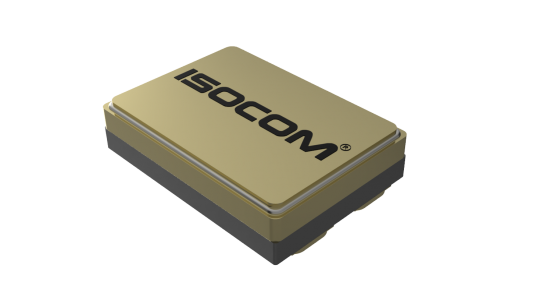

Hermetic Surface Mount Package

Extremely Low Dropout Voltage: 425mV @ 7.5 Amps

Available in 1.5V, 1.7V, 1.8V, 1.9V, 2.0V, 2.5V, 3.3V, 3.4V, 5.0V and


On Board Thermal Shut Down

Low Ground Current: 130mA Typical at Full Load

1% Maximum Guaranteed Accuracy

Output Current to 7.5 Amps

Alternate Output Voltages Available


The IS5275 series voltage regulators are available in +1.5V, +1.7V, +1.8V, +1.9V, +2.0V, +2.5V, +3.3V,

+3.4V, +5.0V and +12.0V output configurations. All boast ultra-low dropout specifications due to the utilization of a super PNP output pass transistor with monolithic technology. Dropout voltages of 425mV at 7.5 amps are typical in this configuration, which drives efficiency up and power dissipation down. Accuracy is guaranteed with a 1% maximum output voltage tolerance. The IS5275 series is packaged in a space efficient 3 pin power surface mount ceramic package.
