Voltage Regulators

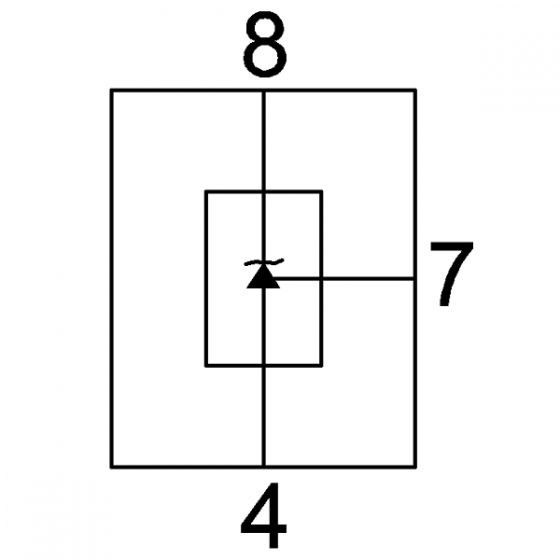

IS109 Schematic

IS109 Features

Maximum initial tolerance of 0.2%

Wide operating current range

Excellent Temperature Stability

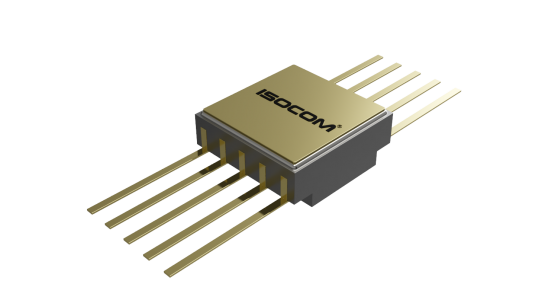

10-pin flatpack package

Full military temperature range (‐55°C to +125°C)

Space level screened


The IS109 2.5V shunt regulators with excellent initial voltage tolerance of ±5mV with very good temperature stability. The adjustment terminal allows the reference voltage to be adjusted to compensate for system errors and features a wide current range with low dynamic impedance over the full temperature range. These devices are packaged in a 10-pin flatpack package and available in lead form or surface mount, with solder dip option available.

How to buy Request quote Download Datasheet



Login to access Documents and the ability to Request a Quote.

Forgot your password?

Request quote

Part: IS109

Please give details of your requirements and a member of the team will be in touch.
